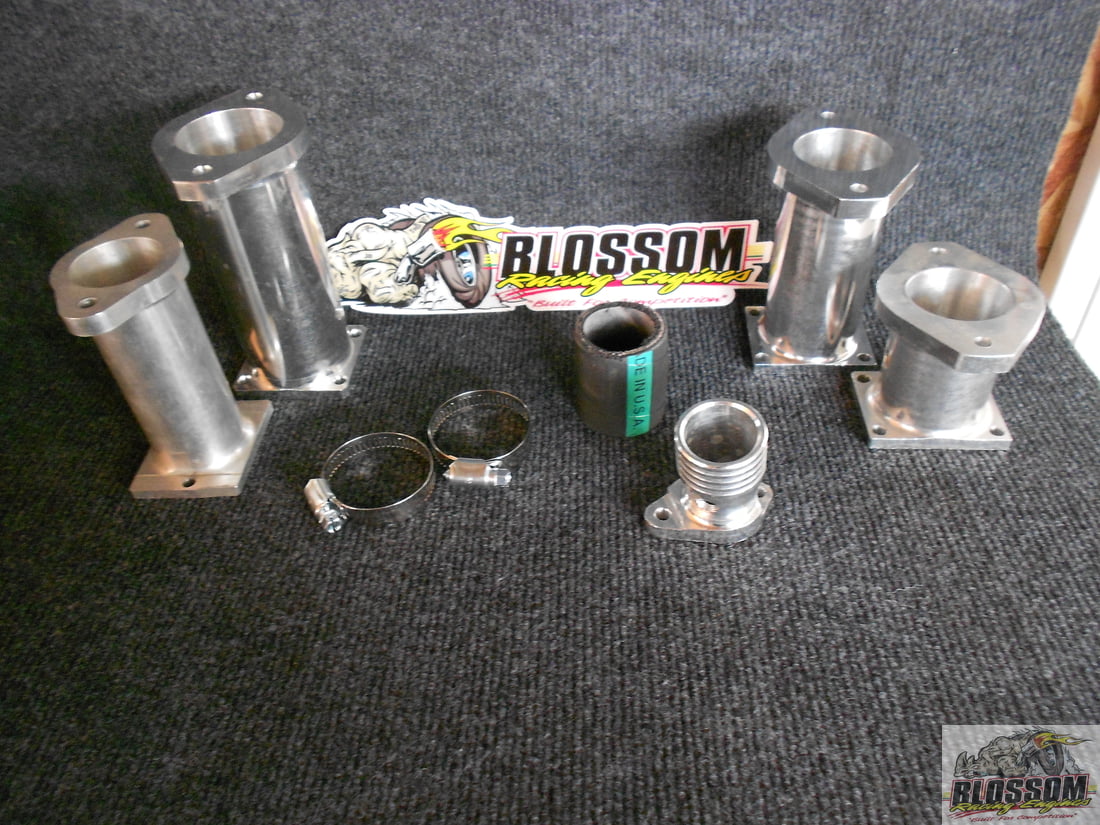

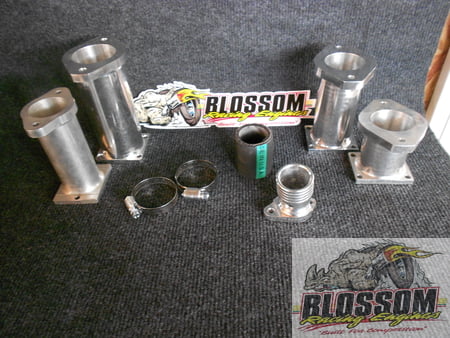

Billet intake manifolds. Click on the manifold to see the price. - Raptor intake manifold: 2.300 long, two bolt mounting with 1/4 inch hole for pulse line. .975 opening to 1.150 ID. OD 1.445. Comes with 2 hose clamps and Rubber hose.
- Baby Rhino intake manifold: 4.500 long. 2 bolt mounting, 2.075 center to center. 2 bolt flange with 2.900 center to center. 1.250 to 1.500 ID.
- Rhino short intake manifold: 2.755 Long. 4 bolt mounting, center to center 2. 075 left to right and 1.575 center to center up to down. 2 bolt flange with 2.900 center to center. 1/4 inch hole for pulse line. 1.500 to 1.690 ID.
- Rhino Standard intake manifold: 4.500 long. 4 bolt mounting, center to center 2.075 left to right and 1.575 center to center up to down. 2 bolt flange with 2.900 center to center. 1/4 inch hole for pulse line. 1.500 to 1.700 ID.
- Rhino Outlaw intake manifold: 5.500 long. 4 bolt mounting with 2.100 center to center left to right. 1.600 center to center up and down. 1/4 inch hole for pulse line. 1.750 to 1.870 ID.
|
